P10mm Indoor SMD 320mmx160mm 1/8 Scan LED Module

P10mm Indoor SMD 320mmx160mm 1/8 Scan LED Module

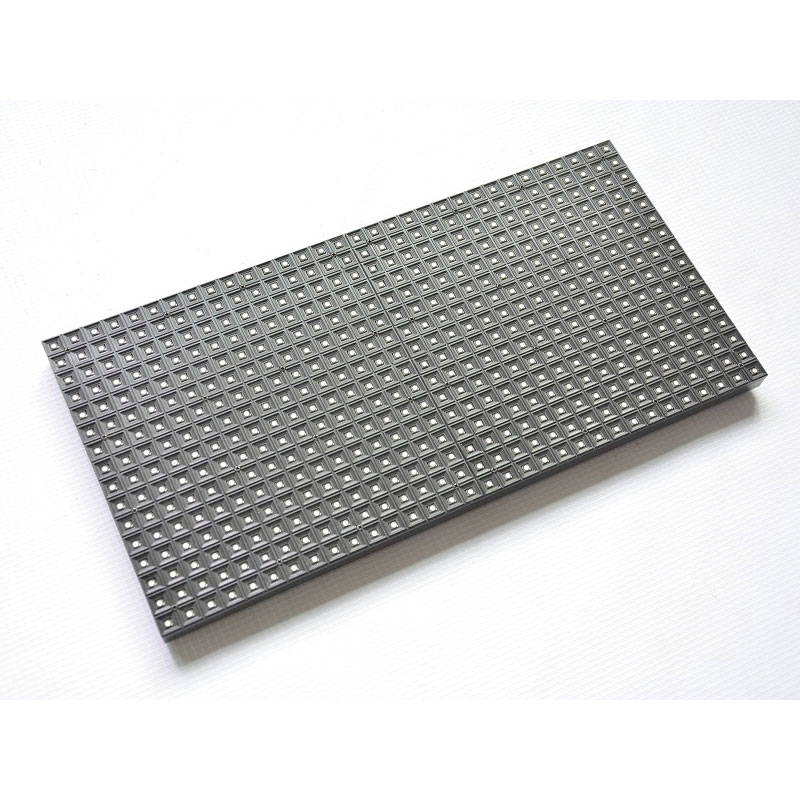

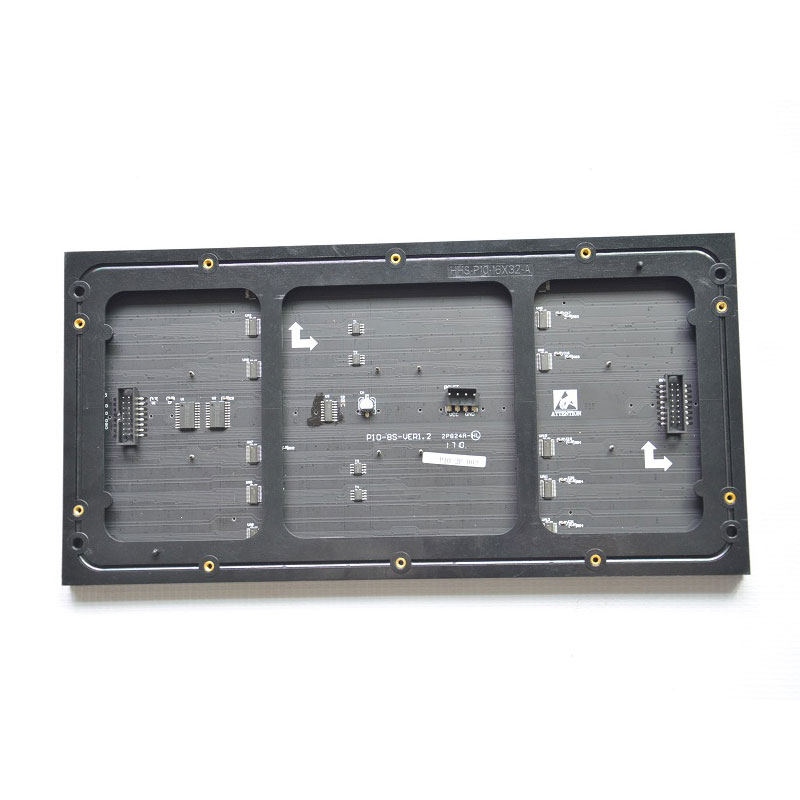

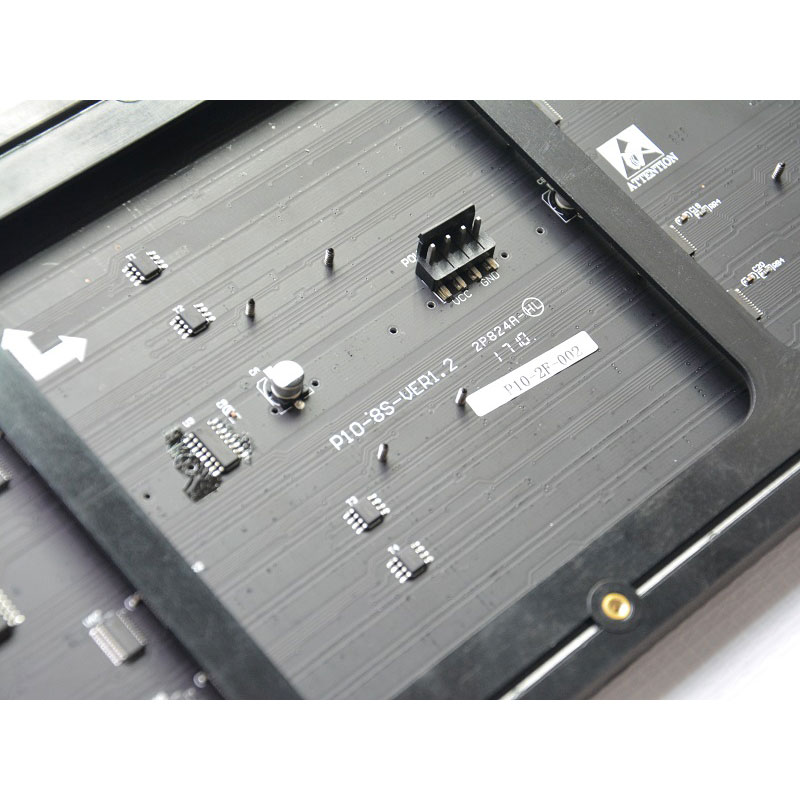

Indoor P10mm SMD LED Display Module Size is 320mmx160mm With 32×16 dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
If you want to build led screen, please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

LED Module including the Data & Power Cables.
2 Years Warranty, Ship in 24 hours, Free Online Support.
LED Module Can Work With Linsn, Novastar, Colorlight, Xixun LED Conrol Card Etc.
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

Main Specifications:

Items	Parameter
Product Model	P10mm Indoor LED Module
Module size	320x160mm
resolution ratio	32*16dots
Pixel pitch	10 mm

Pixel configuration	RGB 3in1
Driving method	Constant Current Driving,1/8 scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD3528
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥1920HZ
Brightness in White Color (cd/m2):	800-1000 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤300W/m2 (MAX700)
Viewing Angle	120(Horizontal),120(Vertical)
Best Viewing Distance	10m-100m
Input Voltage	110V/60HZ-220V/50Hz Switchable
