P1.538mm Indoor SMD 320mmx160mm 1/52 Scan LED Module

P1.538mm Indoor SMD 320mmx160mm 1/52 Scan LED Module

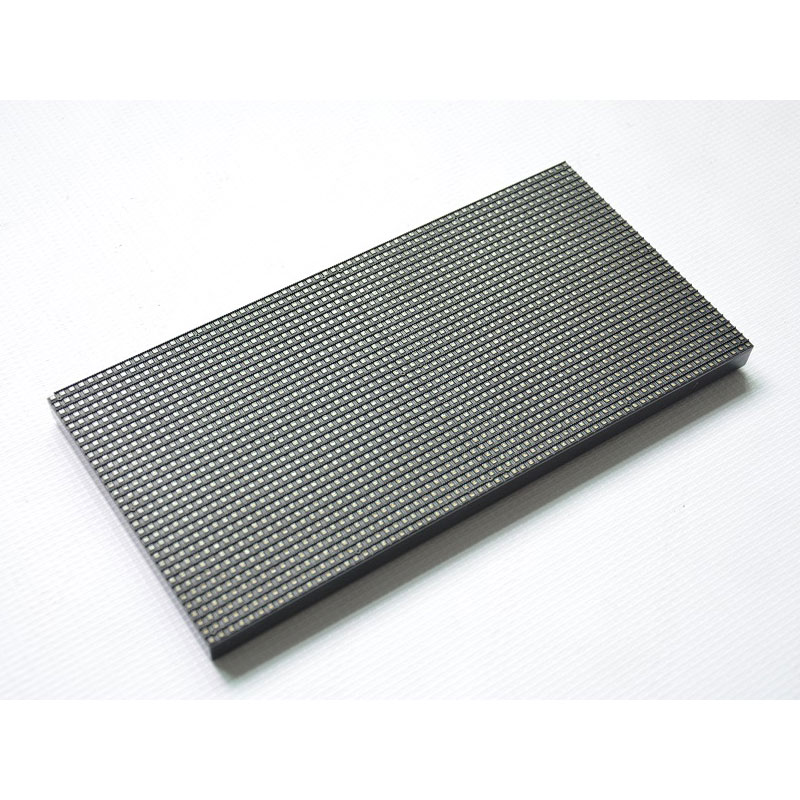

Indoor P1.538mm SMD LED Display Module Size is 320mmx160mm With 208×104 dots.

Attention:

We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
If you want to build led screen, please buy enough LED Modules and Spare Parts.
Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Remark:

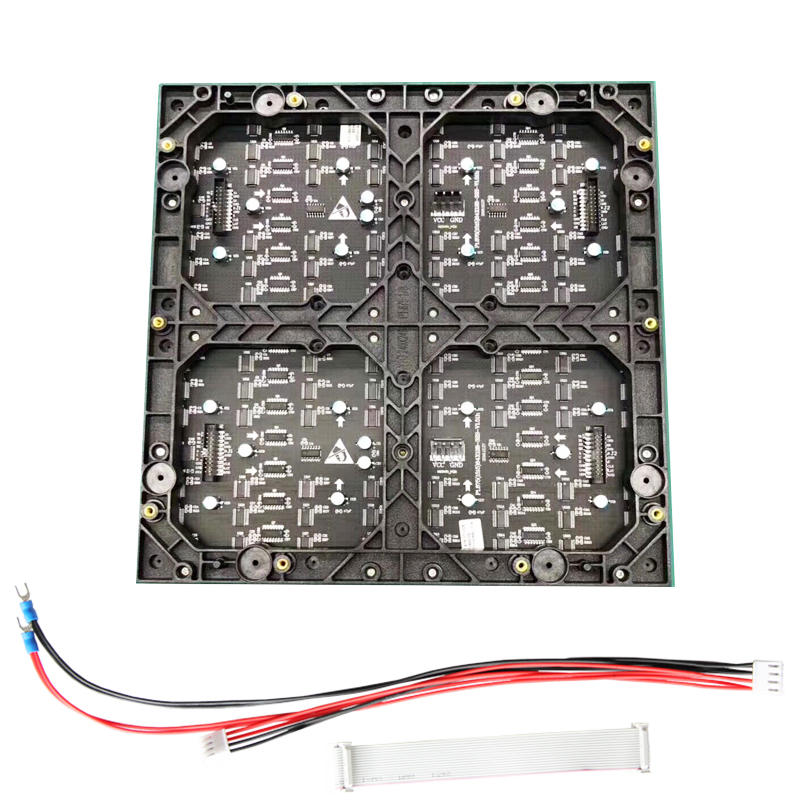

LED Module including the Data & Power Cables.
2 Years Warranty, Ship in 24 hours, Free Online Support.
LED Module Can Work With Linsn, Novastar, Colorlight, Xixun LED Conrol Card Etc.
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.

Main Specifications:

Items	Parameter
Product Model	P1.538mm Indoor LED Module
Module size	320mmx160mm
resolution ratio	208*104dots
Pixel pitch	1.538 mm

Pixel configuration	RGB 3in1
Driving method	Constant Current Driving,1/52 scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD1010 (Black LED)
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥3840HZ
Brightness in White Color (cd/m2):	800-1000 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤300W/m2 (MAX 700)
Viewing Angle	140(Horizontal),140(Vertical)
Best Viewing Distance	1.5m-15m
Input Voltage	110V/60HZ-220V/50Hz Switchable
