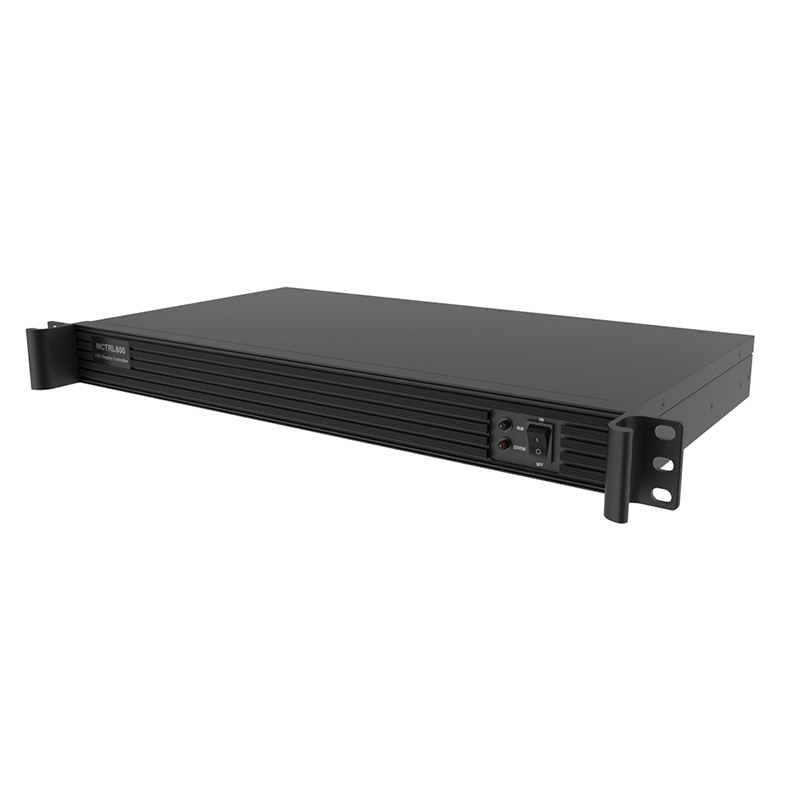

Novastar MCTRL600 LED Display Controller

Novastar MCTRL600 LED Display Controller Details

Novastar MCTRL600 LED Display Controller include 1 DVI input, 1 audio input, 1 HDMI 1.3 input
1 light sensor connector
Resolutions up to 1920×1200@60Hz and downward compatibility.
4 RJ45Gigabit Ethernet outputs, each up to 650,000 pixels
1 type-B USB control port
UART IN and UART OUT control ports for device cascading
New generation of NovaStar calibration technology, which is fastand efficient.

Electrical Parameters	Input voltage	AC 100 V–240 V, 50/60 Hz
Electrical Parameters	Rated power consumption	16 W
Operating Environment	Temperature	-20°C–60°C
Operating Environment	Humidity	0% RH–90% RH, non-condensing
Physical Specifications	Dimensions	482.0 mm × 268.5 mm × 44.4 mm
	Weight	2.9 kg
	Space Requirement	1U
Packing Information	Carrying case	530 mm × 140 mm × 370 mm, craft paper box
	Accessory box	402 mm× 347 mm × 65 mm, craft paper box one power cord one USB cable one DVI cable
	Packing box	550 mm × 440 mm × 175 mm, craft paper box
Certifications	FCC, RoHS, EAC, IC, PFOS, LVD, EMC
