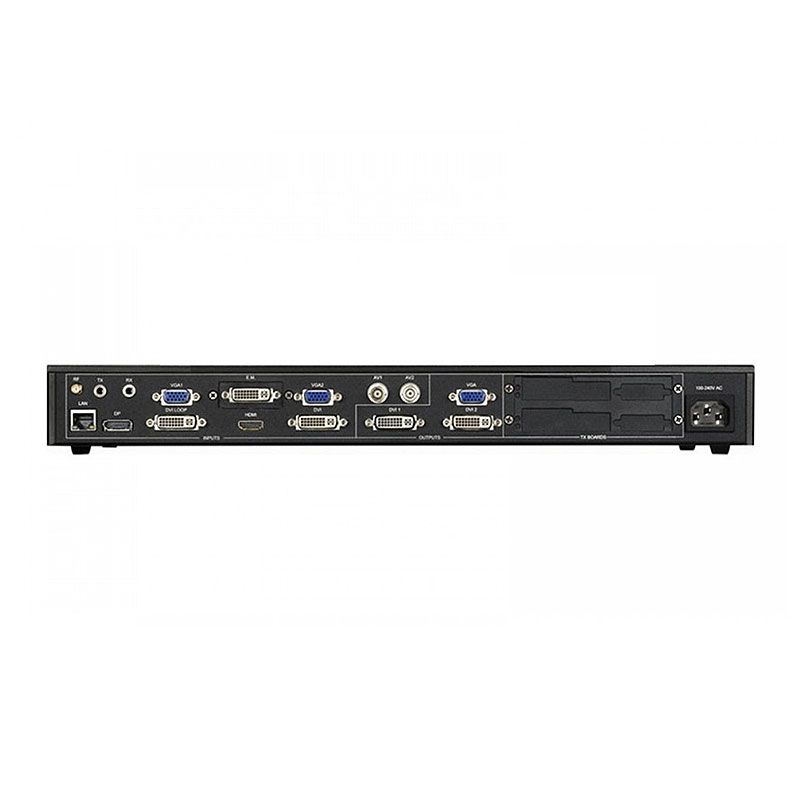

Magnimage LED-550DS LED Video processor

Magnimage LED-550DS LED Video processor

LED-550DS series is a high performance full color LED video processor which has 16 switching effects

including fade in/ fade out, cut, switch and so on.It can customize any DVI input resolution improve the system

stability, customized output resolution based on real specification of LED screen to reach the effect of pixel to

pixel display. Intelligent seamless splicing technology of super size LED screen with multi-sending card image

splicing.The unique synchronous follow,up technology ensure the image is fluent and no dislocation and trailing

when it’s high speed action.

Technical Specification

Inputs

Outputs

Ports	No.	Resolution Specification
DVI loop	1	Same as DVI input
SDI loop^*	1	3G SDI
VGA	1	1024×768/60Hz/75Hz/85Hz/100Hz/120Hz 1280×1024/60Hz 1440×900/60Hz 1680×1050/60Hz 1600×1200/60Hz 1600×1200/60Hz-Reduced 1920×1080/60Hz/50Hz 2560×816/60Hz 1920×1200/60Hz 2048×640/60Hz 2560×816/60Hz 2304×1152/60Hz 2048×1152/60Hz 1024×1280/60Hz 1536×1536/60Hz Customized output resolution: Horizontal Max Resolution 3840pixel ; Min 640 Vertical Resolution: Max 1920; Min 480
DVI	2

^* Optional

Cosole specification
